Quick Operation Guide

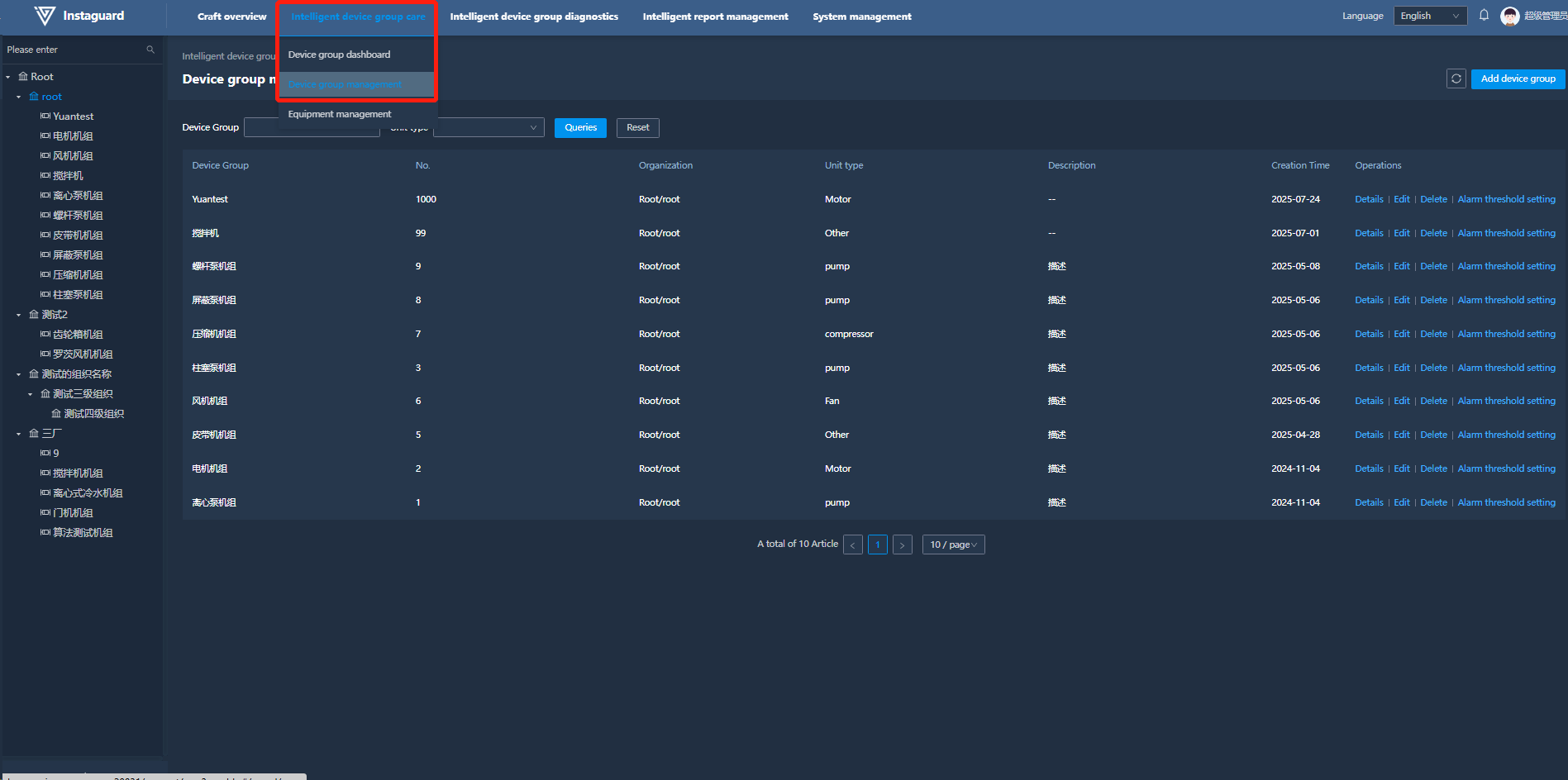

Instaguard Quick Operation Guide

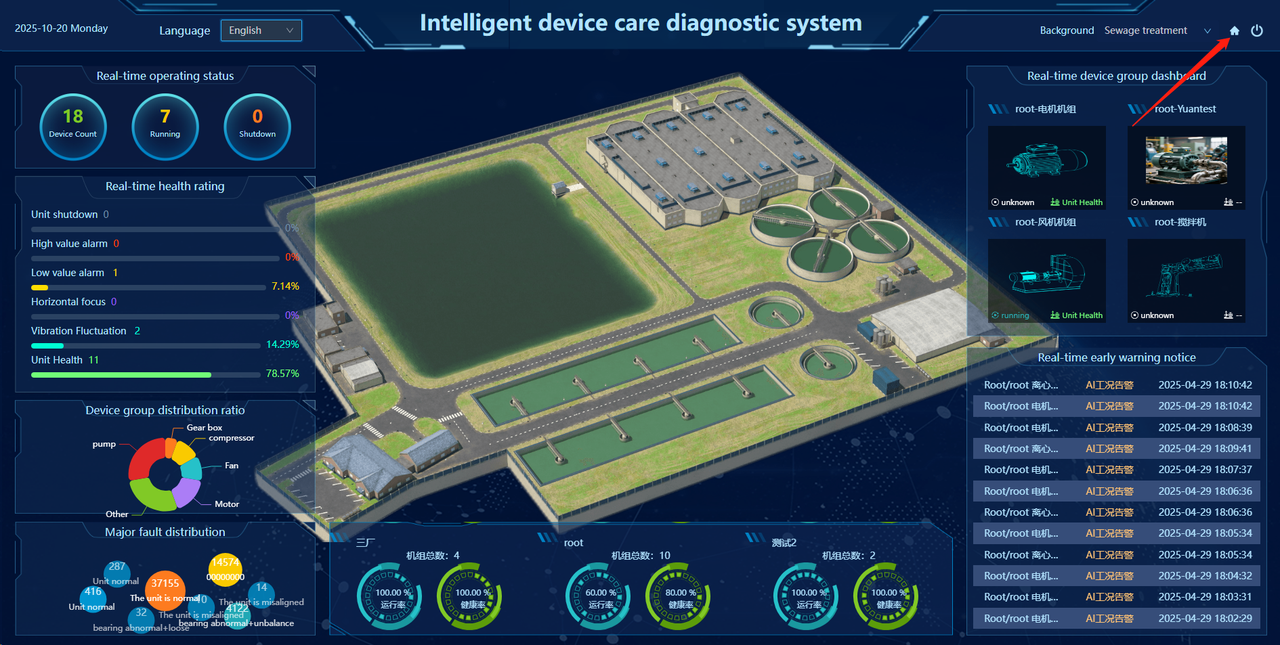

System Login

Public Cloud: https://www.instaguard.com.cn/
Private Cloud: Project-specific address (similar to 192.168.111.174:20031)

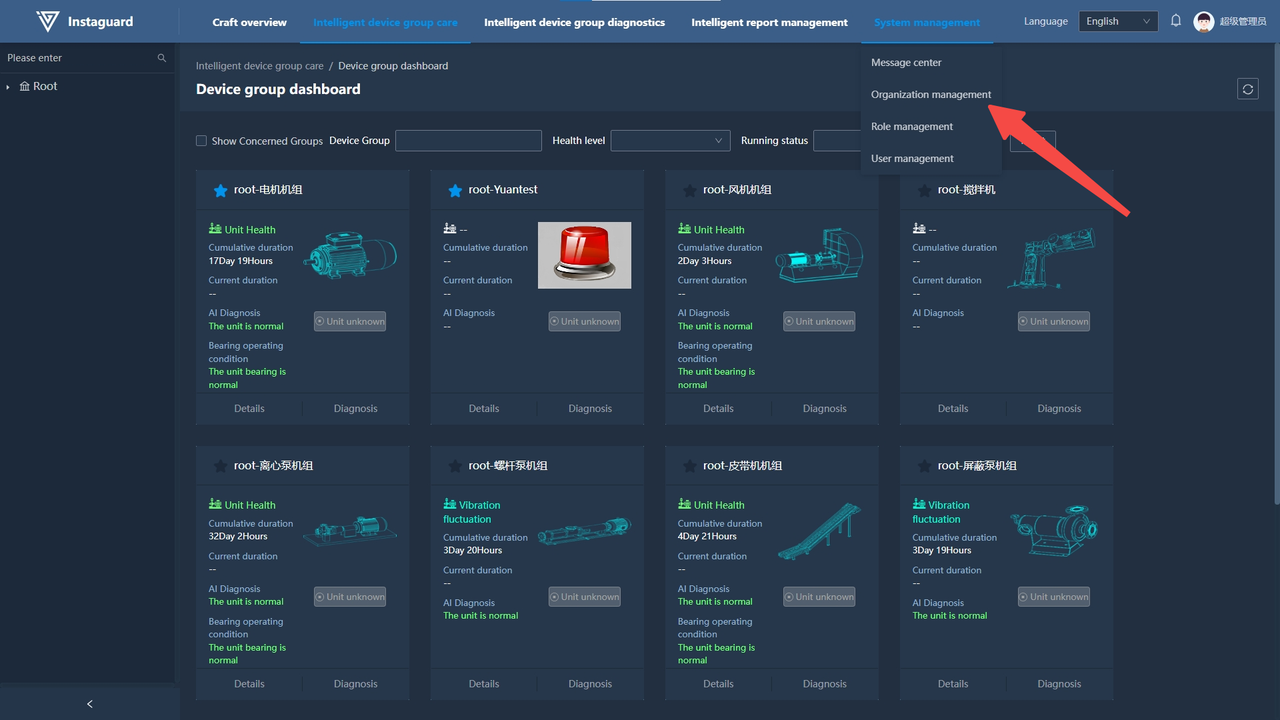

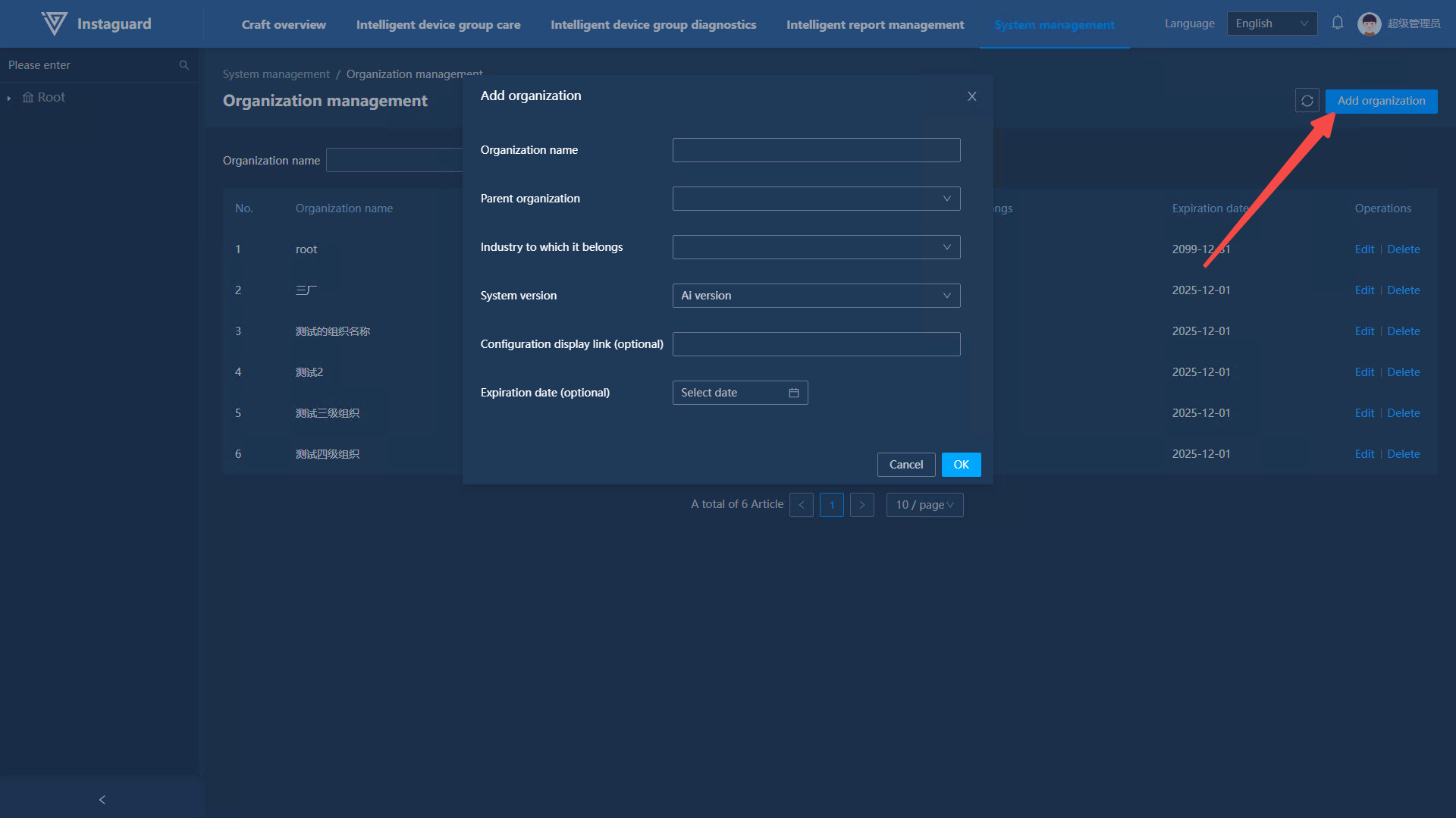

Add Organization

Generally, the expiration date is not selected. If there are contract restrictions, fill it in according to the time specified in the contract.

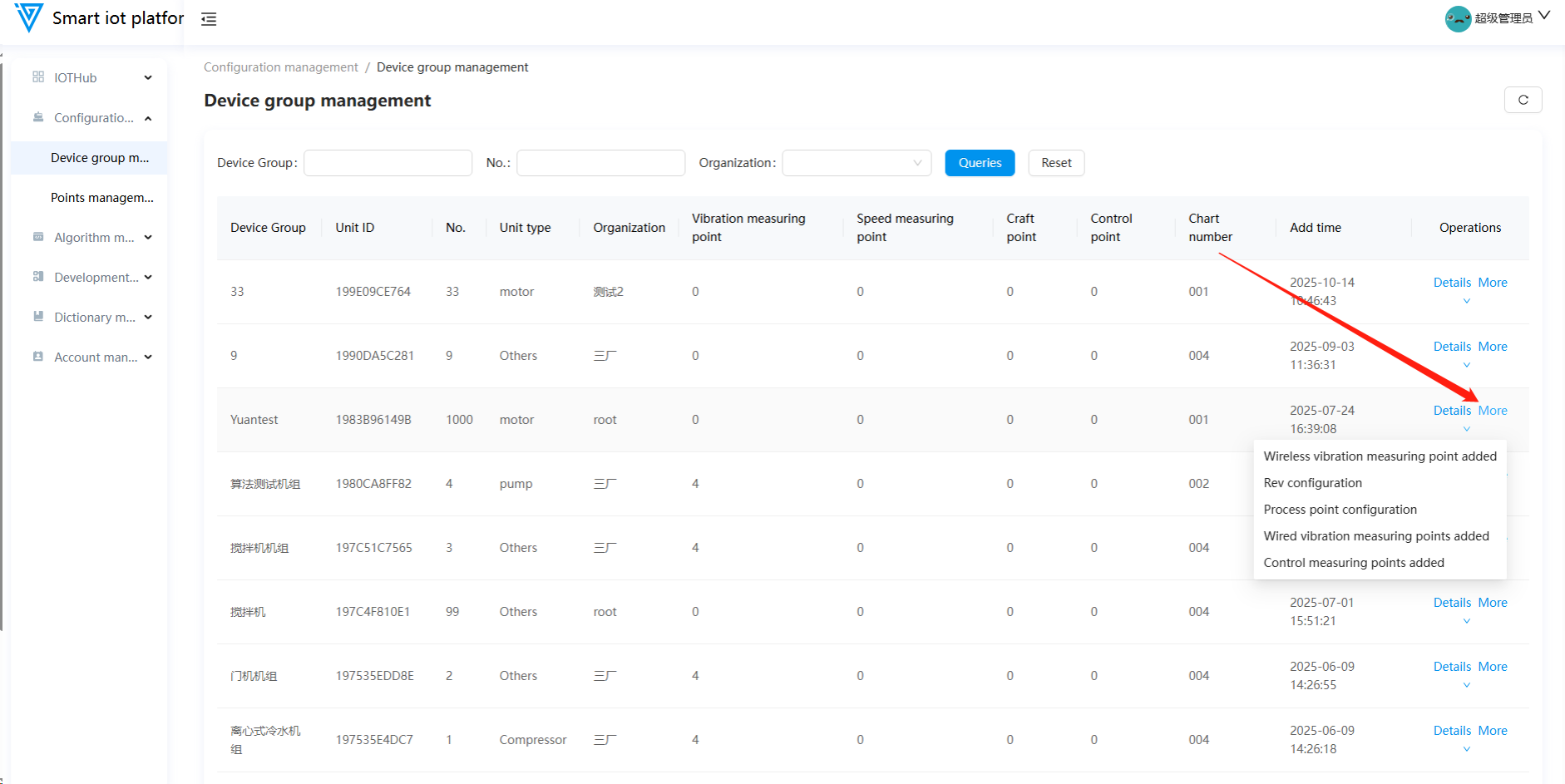

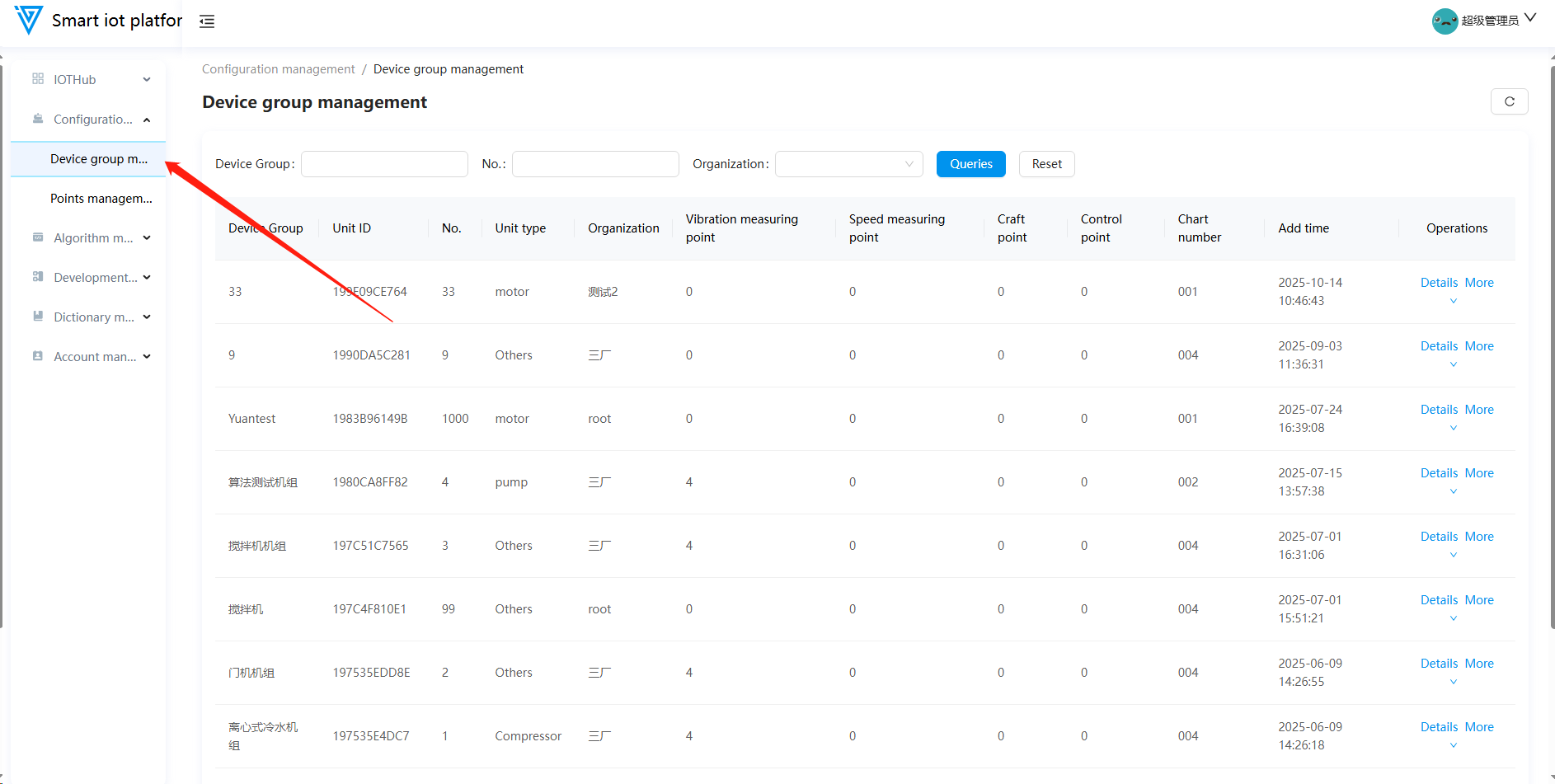

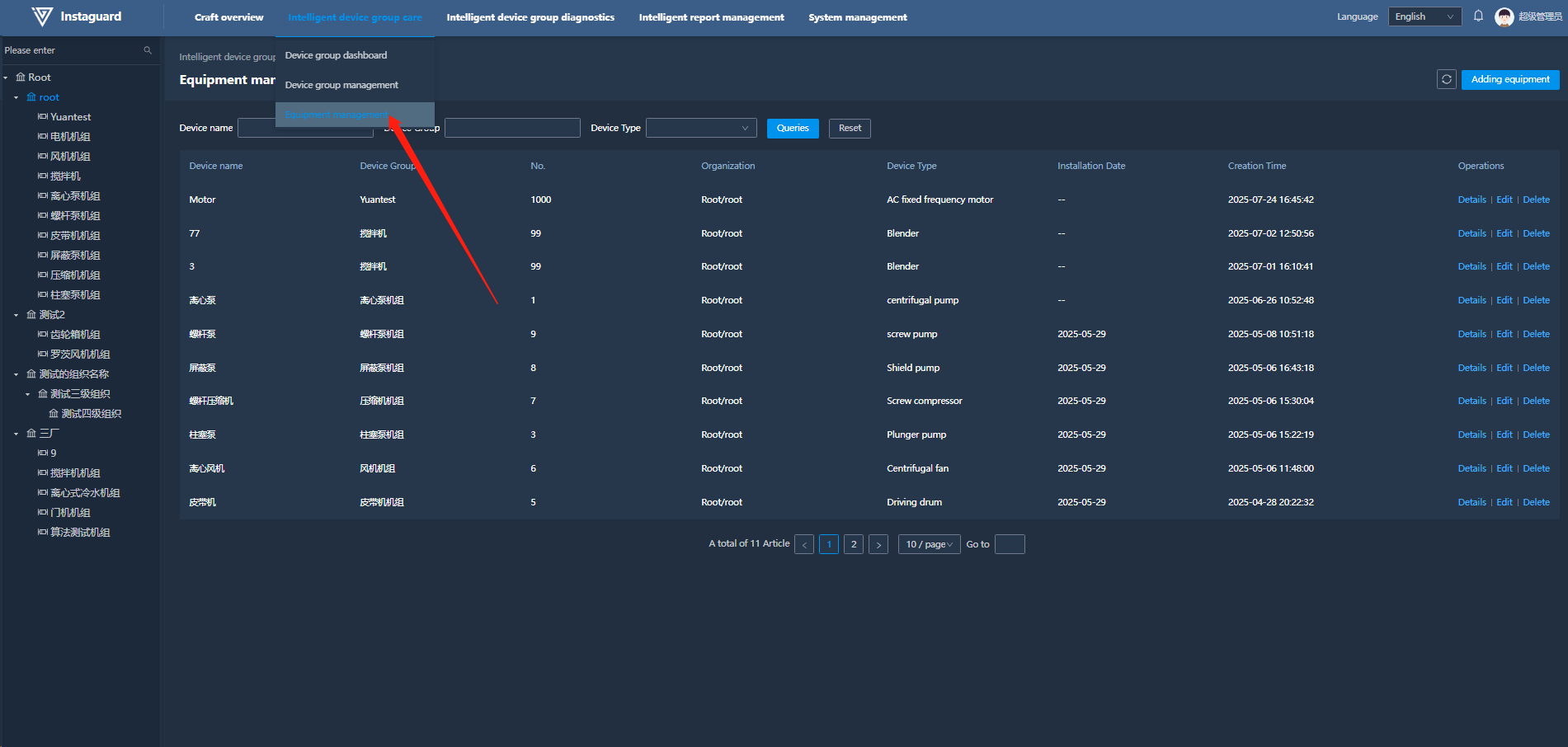

Add Unit

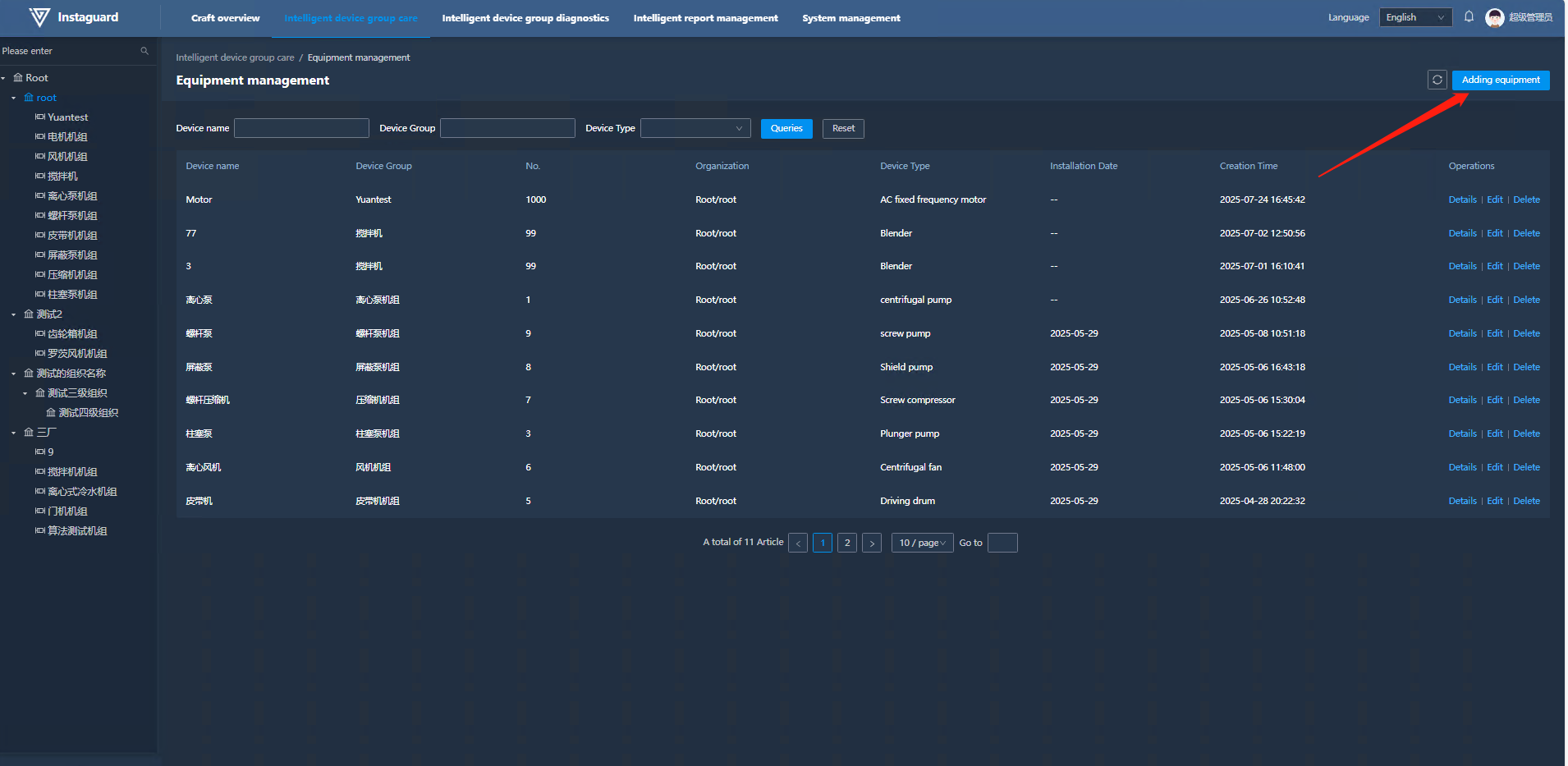

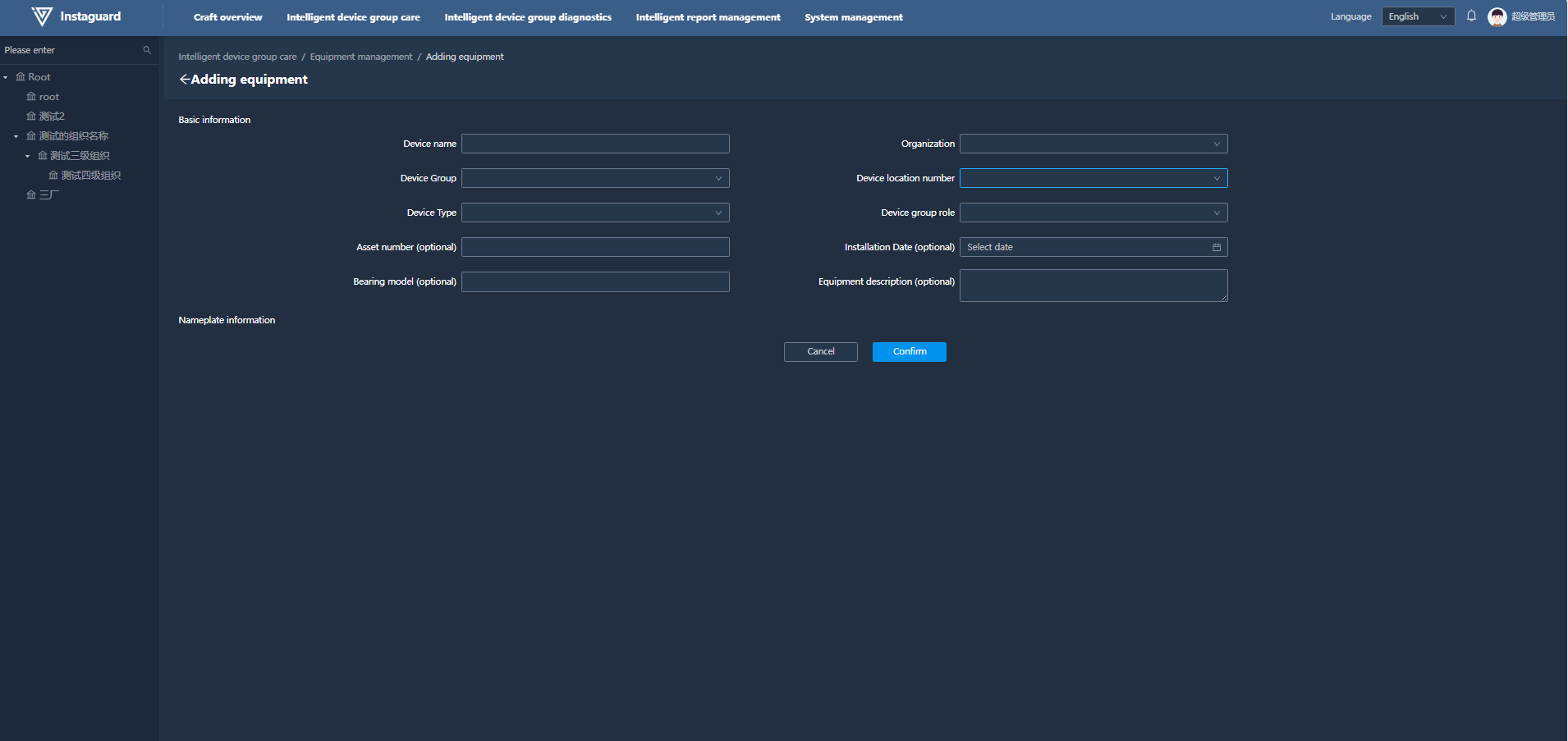

Add Device

For the unit role, fill in the drive device. Transmission devices, driven devices, and motors belong to drive devices; water pumps and fans belong to driven devices; gearboxes belong to transmission devices.

Iothub Quick Operation Guide

System Login

Public Cloud: https://iothub.instaguard.com.cn/
Private Cloud: Project-specific address (similar to 192.168.111.174:20021)

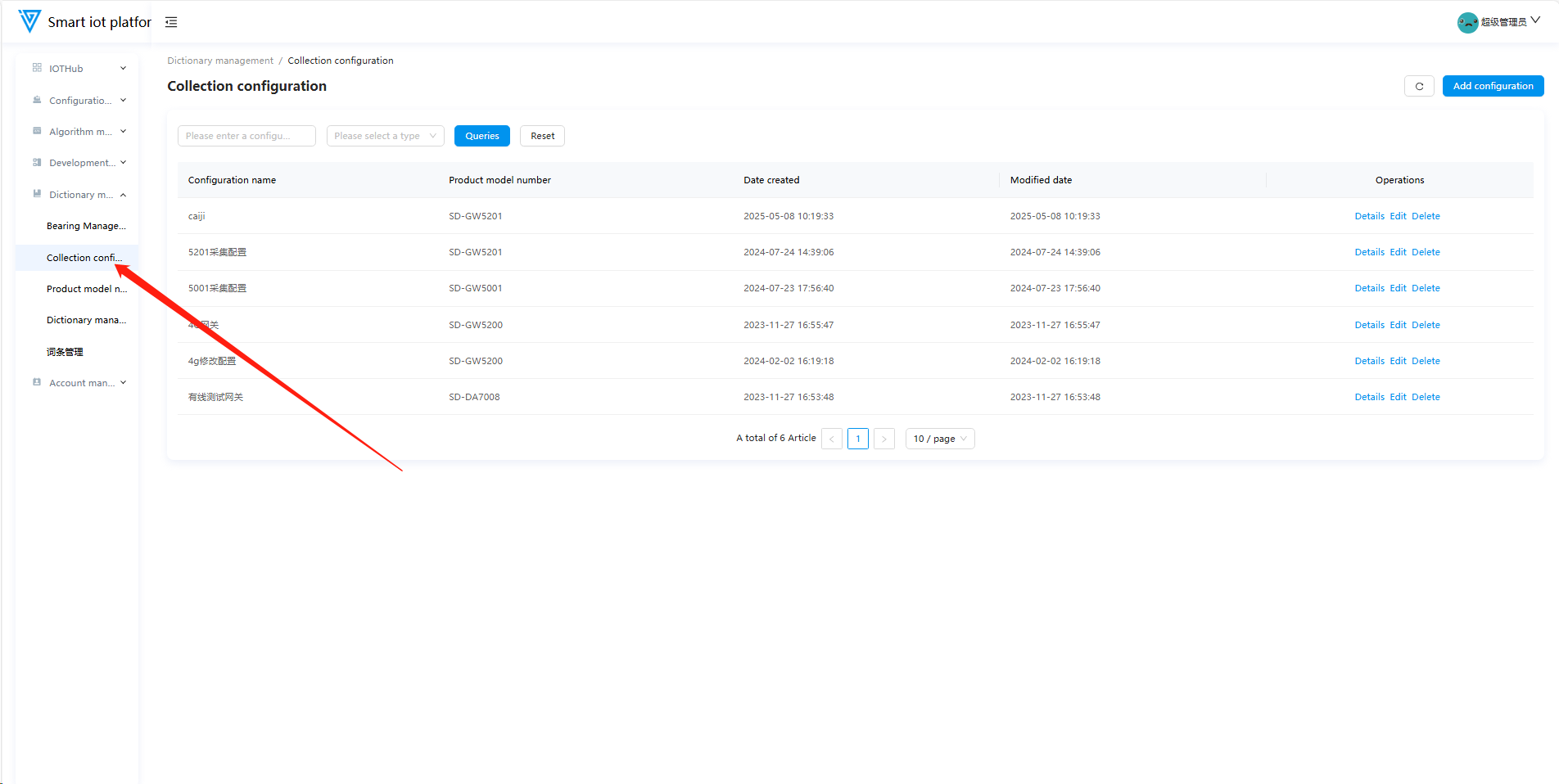

Acquisition Configuration

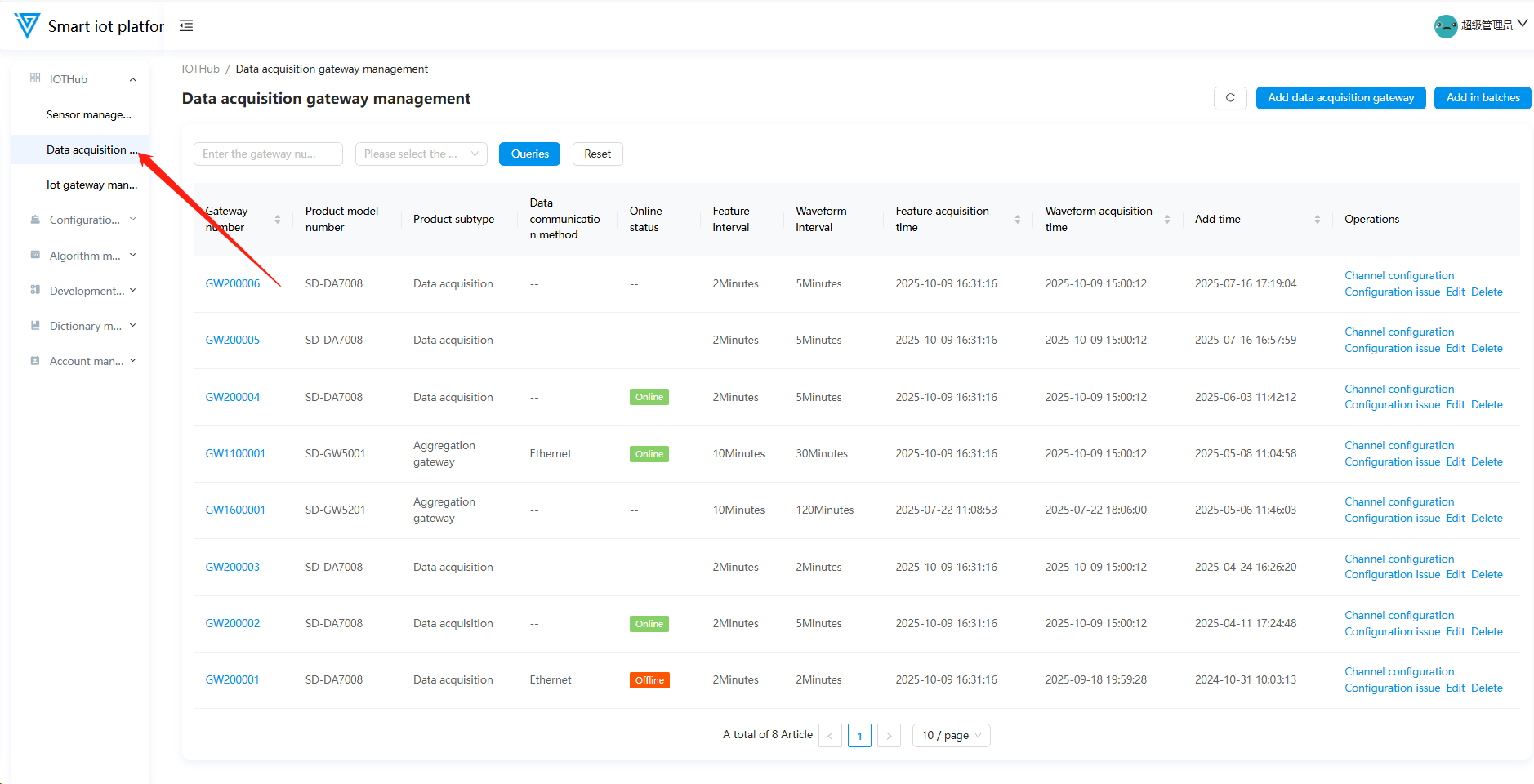

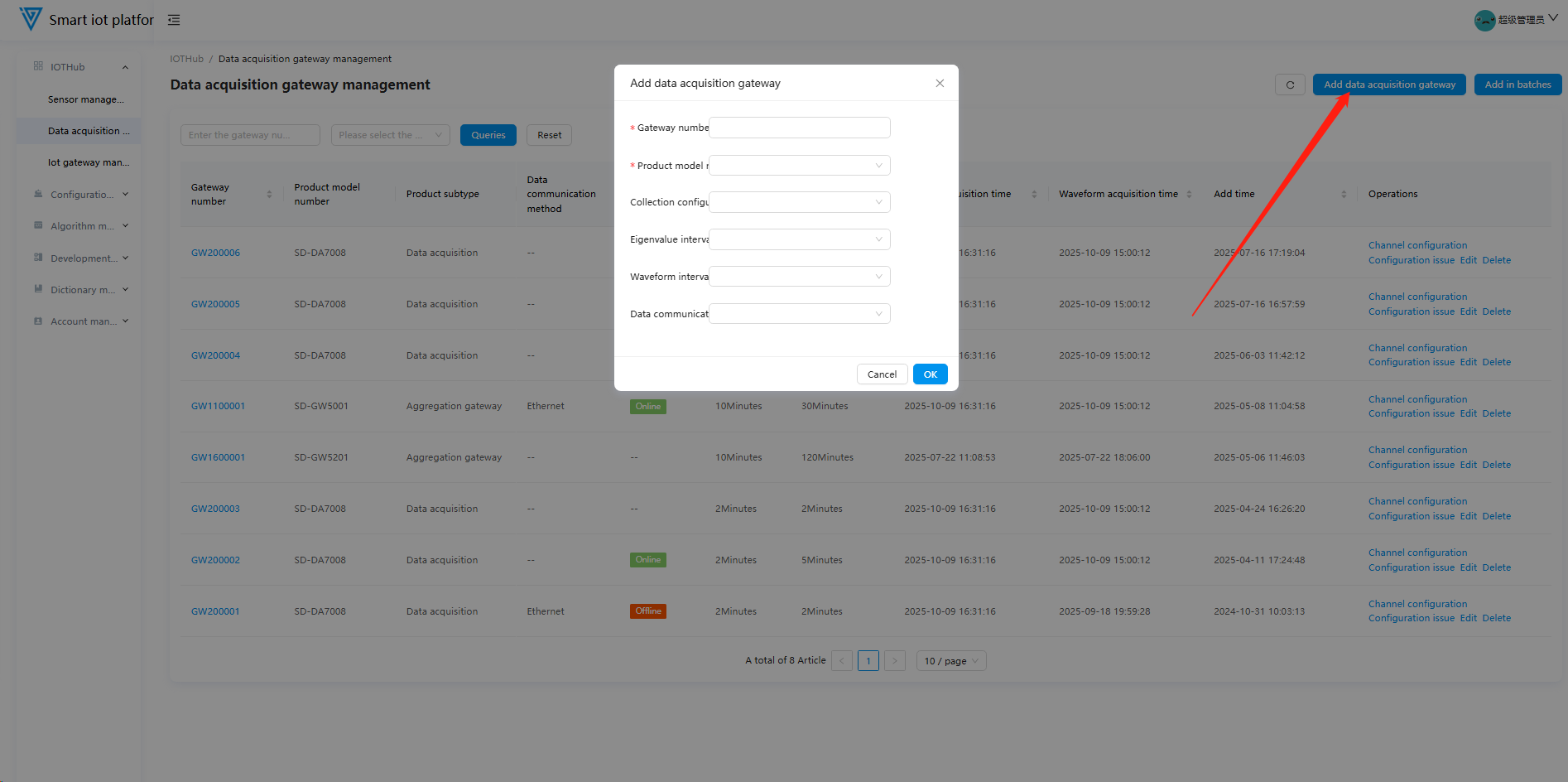

Adding Data Acquisition Gateways
The product number of the data acquisition gateway starts with "GW" and is 8 digits long. The first two digits are fixed as "GW", the middle one digit indicates the gateway type, and the last five digits are the unique serial number. The correspondence between gateway products and serial numbers is as follows:

Product Model	Gateway Number	Product Type
SD-DA7008	GW2XXXXX	8-Channel Vibration Collector
SD-DA7016	GW2XXXXX	16-Channel Vibration Collector
SD-DA7024	GW2XXXXX	24-Channel Vibration Collector
SD-GW5001/5101	GW11XXXXX GW12XXXXX GW13XXXXX GW14XXXXX GW15XXXXX	Vibration Gateway
SD-GW5200/5201	GW16XXXXX GW17XXXXX GW18XXXXX GW19XXXXX	4G Virtual Gateway

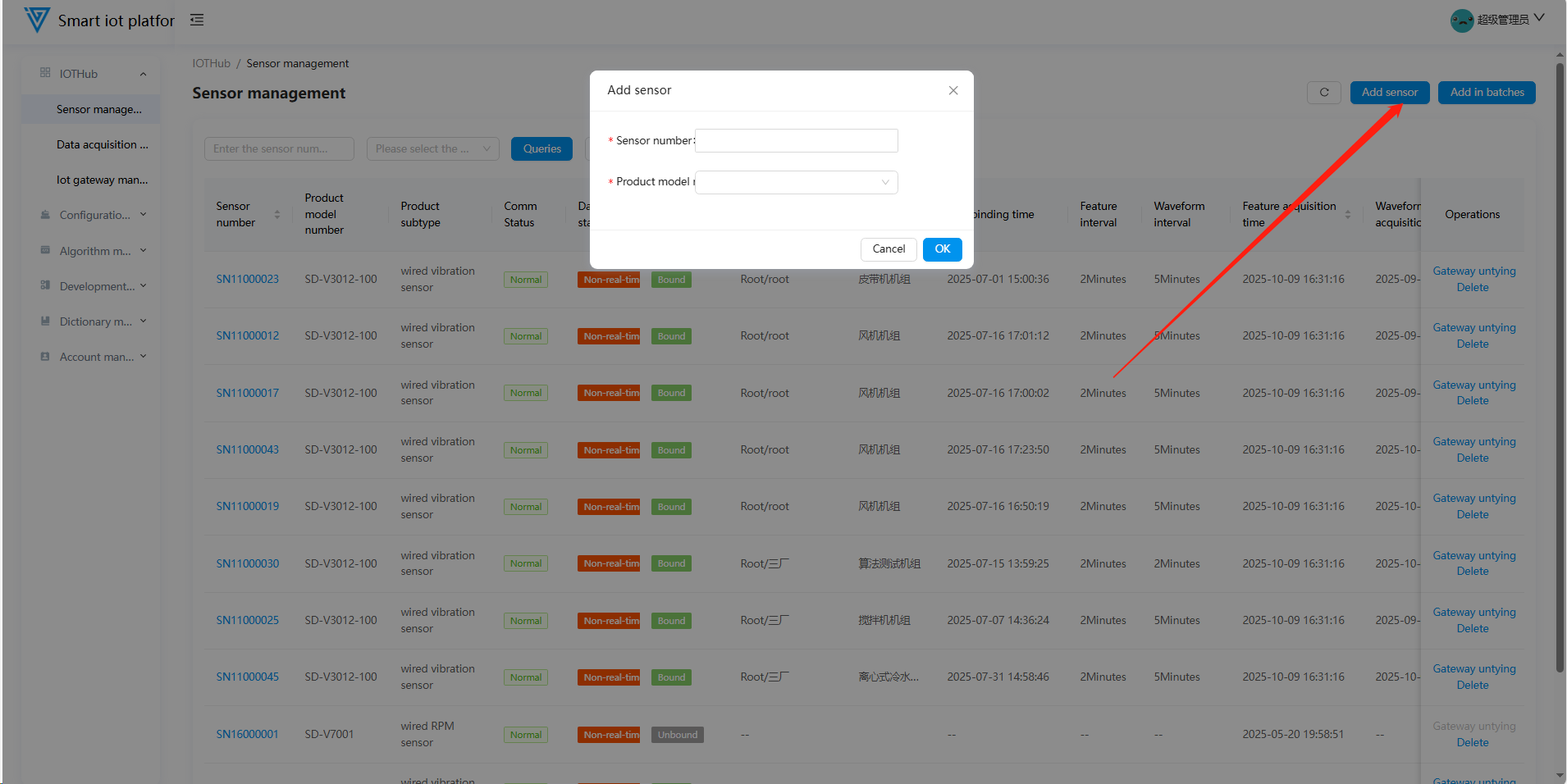

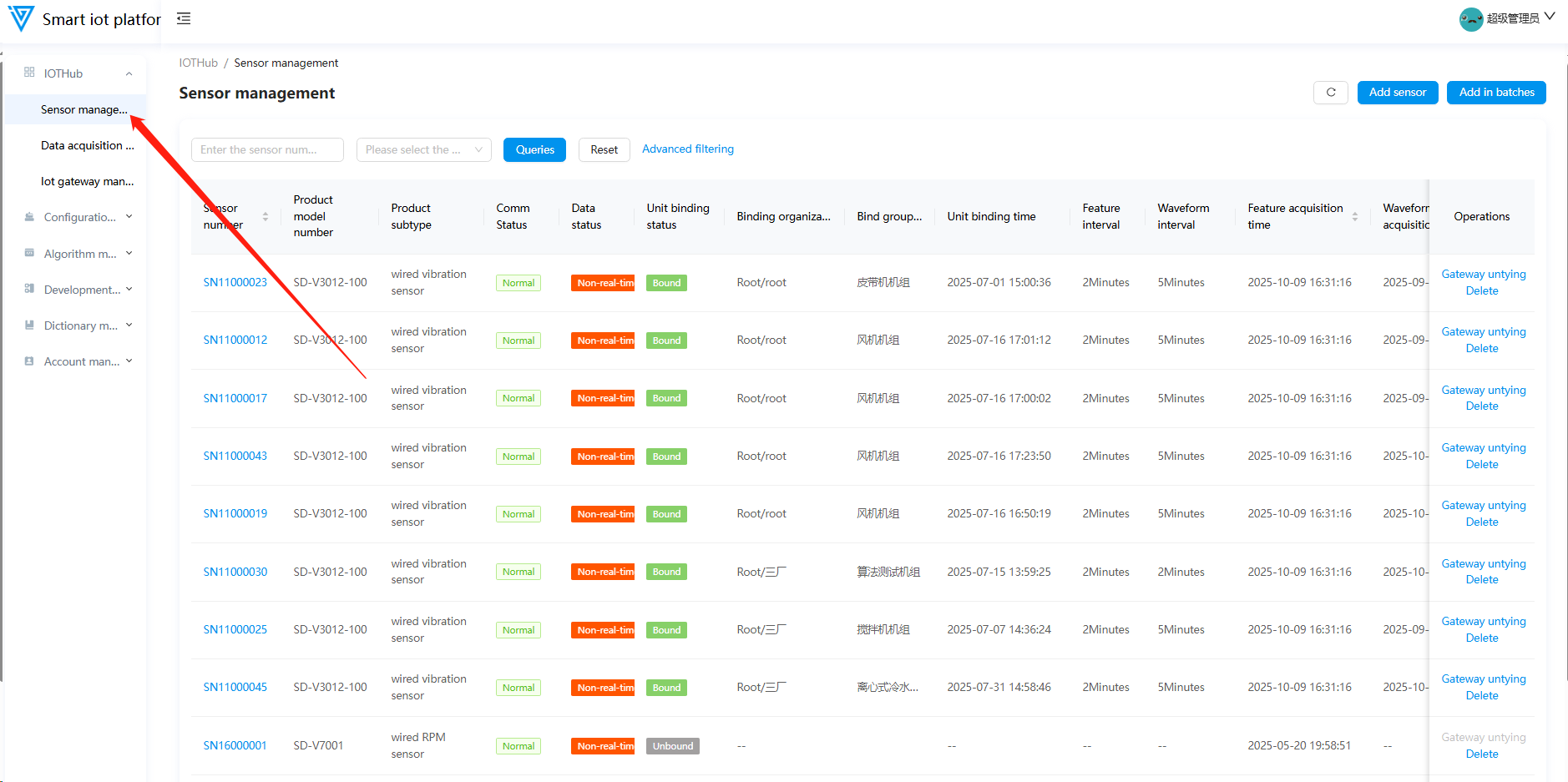

Adding Sensors
When adding sensors, note that the sensor serial number starts with "SN" and is 10 digits long. The middle two digits represent the monitoring type, and the last six digits are the unique serial number. The correspondence between sensor product models and serial numbers is as follows:

Product Model	Serial Number	Product Type	Product Characteristics
SD-V3012-100	SN11XXXXXX	Single-Axis Wired Acceleration Sensor	100mg
SD-V3012-500	SN11XXXXXX	Single-Axis Wired Acceleration Sensor	500mg
SD-V3207-ZG	SN12XXXXXX	Tri-Axis Wireless Zigbee Acceleration Sensor	10k
SD-V3207-4G	SN13XXXXXX	Tri-Axis Wireless 4G-Cat1 Acceleration Sensor	10k, 4G-Cat1

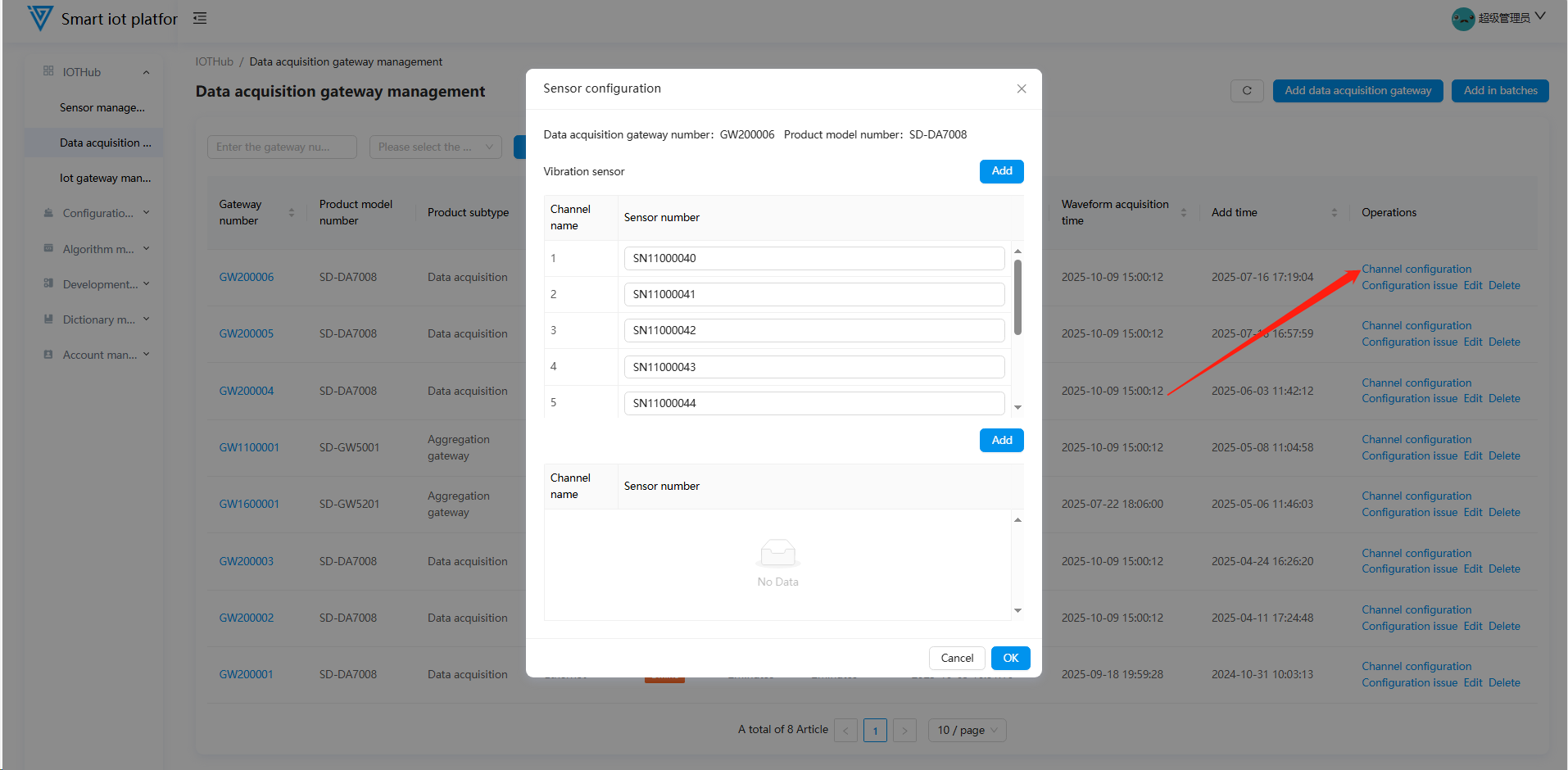

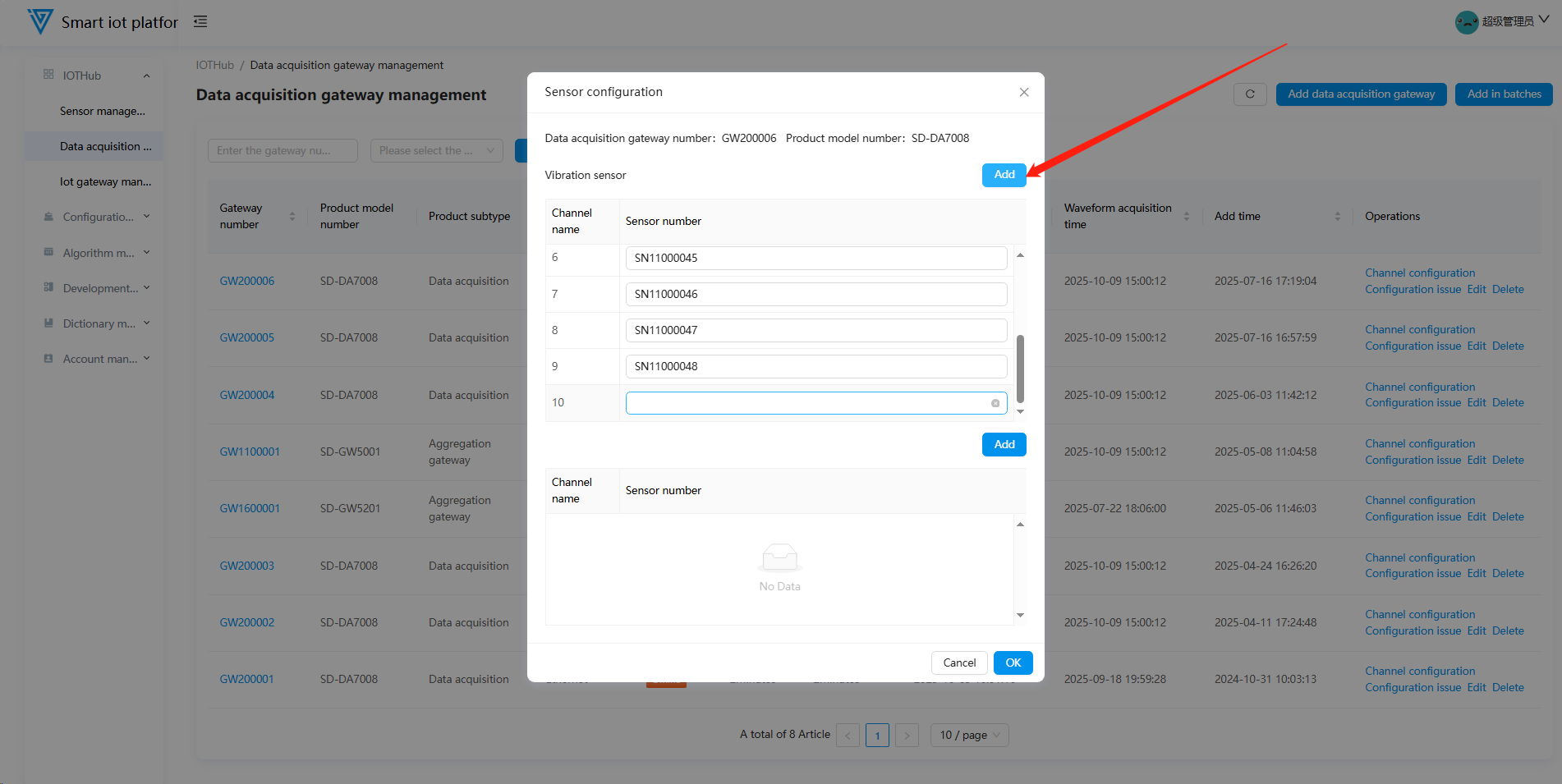

Channel Configuration

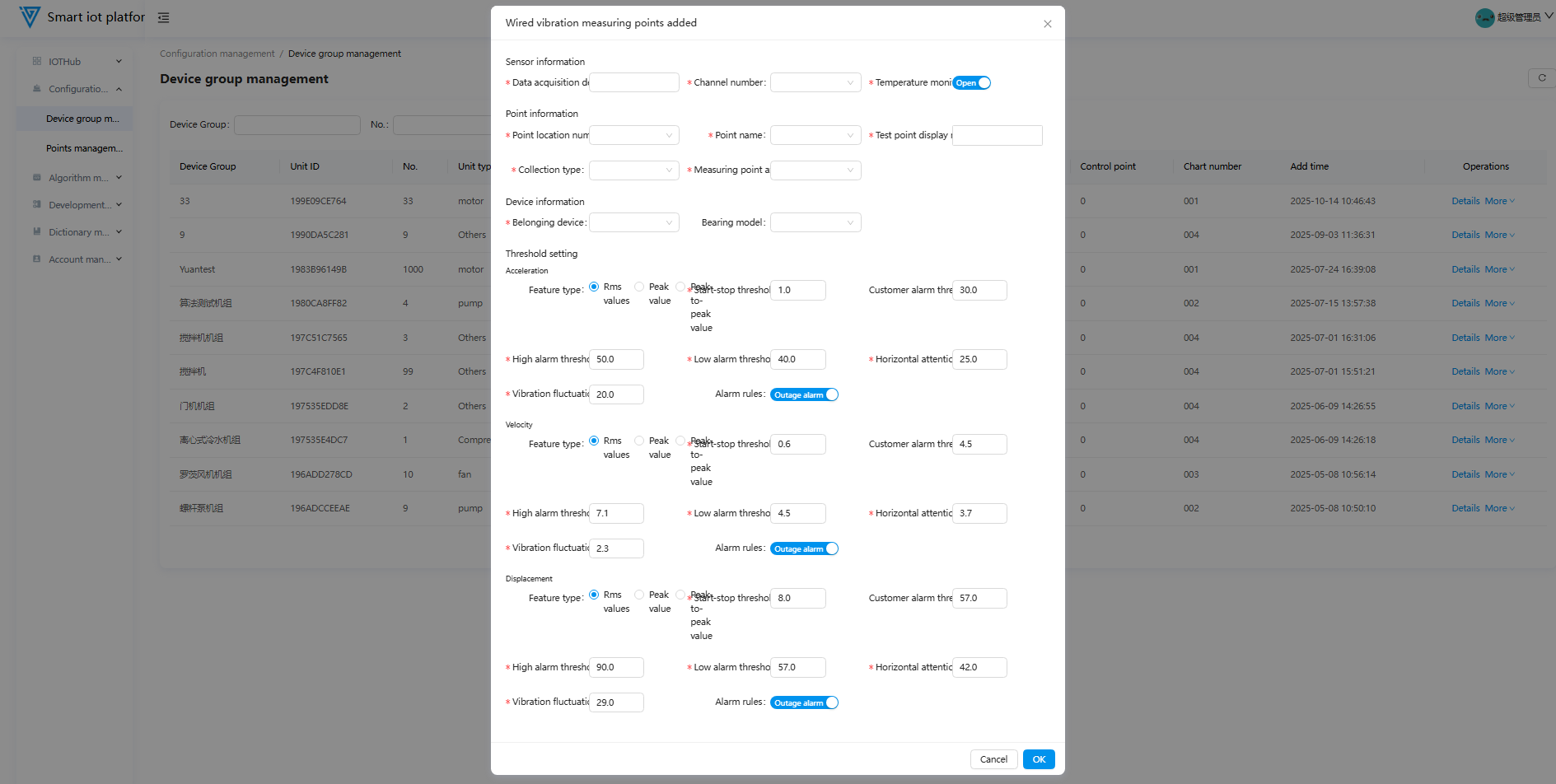

Add Measuring Point

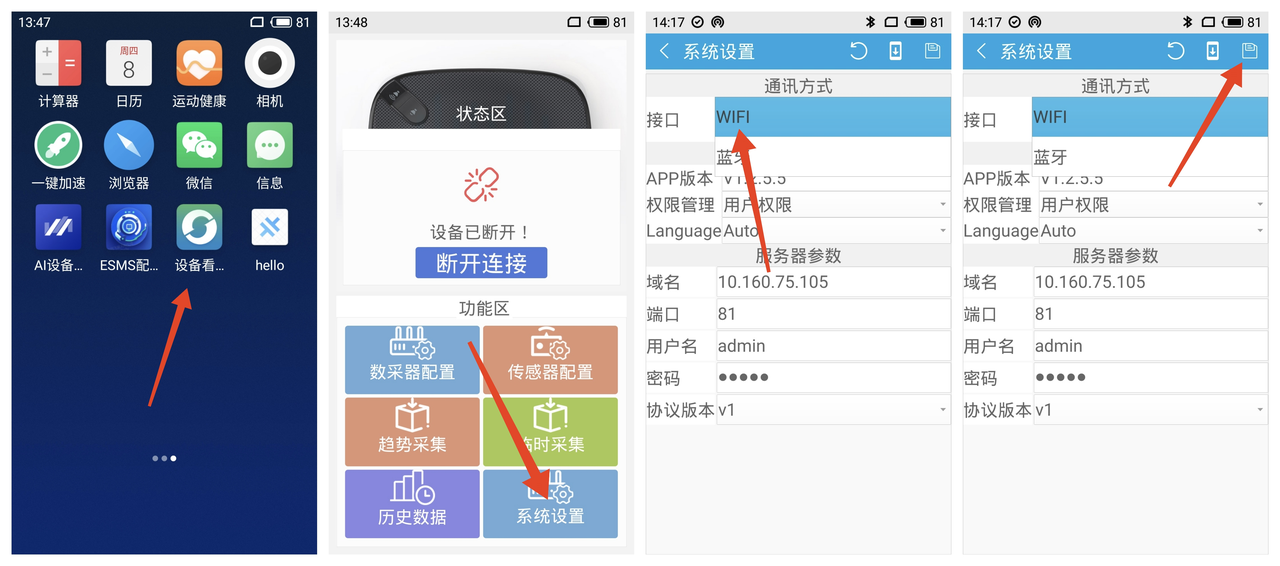

Using APP to Configure SD-DA7000 Series Parameters and Acquisition

Wiring of the Data Collector

Wiring of the Acceleration Measuring Point of the Monitoring Unit
The monitoring unit supports the acquisition of 8/16-channel acceleration-temperature integrated sensors. The acceleration-temperature integrated sensor is a three-wire type, not a PT100 type. Please communicate with us in advance for relevant sensor selection.
