Interface Description

Interface Specifications

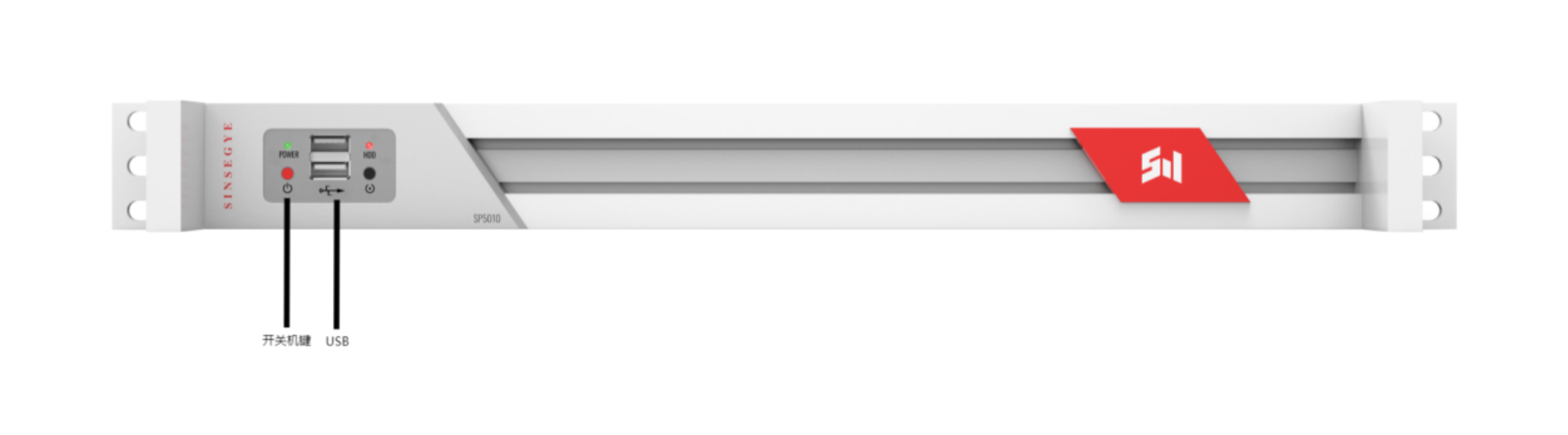

Front Panel

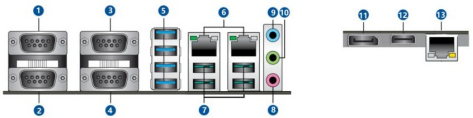

Rear Panel
Rear Panel

No. Interface Name Description
1 COM2 Port RS485 Serial Port
2 COM3 Port RS485 Serial Port
3 COM4 Port RS232 Serial Port
4 COM1 Port RS232 Serial Port
5 USB Port Type-A Interface, USB 3.0 Protocol
6 LAN Port Gigabit Ethernet Port
7 USB Port Type-A Interface, USB 2.0 Protocol
8 Mic In Audio Signal Input (Microphone)
9 Line In Audio Signal Input (Line Level)
10 Line Out Audio Signal Output (Line Level)
11 DP Port DisplayPort Display Interface
12 HDMI Port HDMI Display Interface
13 LAN3 Port EtherCAT Master Port
