Interface Description

Interface Specifications

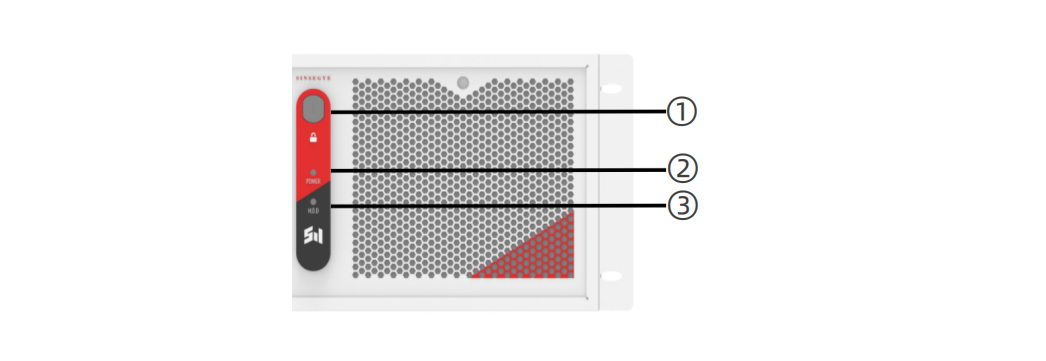

Front Panel

Position Interface Description
1 Keyhole Controls opening/closing of front panel cover using physical key
2 Power Indicator
3 HDD Indicator

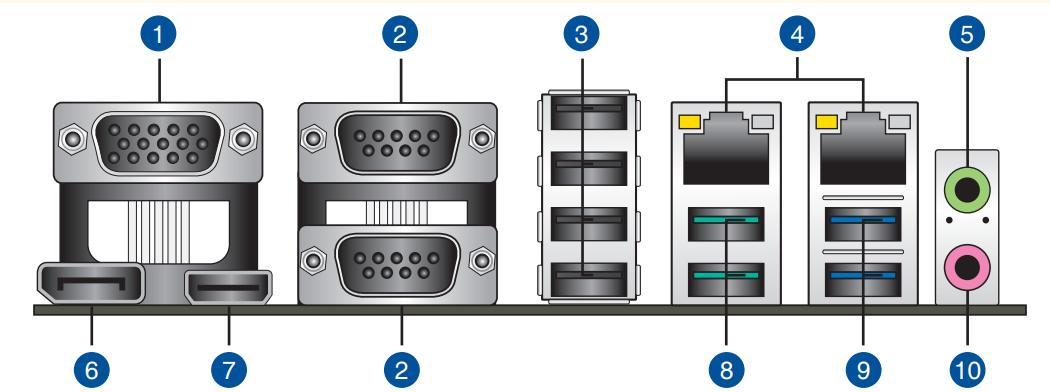

SP5040-3331 Rear Panel

SP5040-3331 Rear Panel
No. Interface No. Interface
1 VGA Port 2 COM Ports (2× RS232/422/485)
3 USB 2.0 Port 4 LAN (i219+i210)
5 Line Out 6 DisplayPort (DP)
7 HDMI Port 8 USB 3.2 Gen2 Port
9 USB 3.2 Gen1 Port 10 Mic In

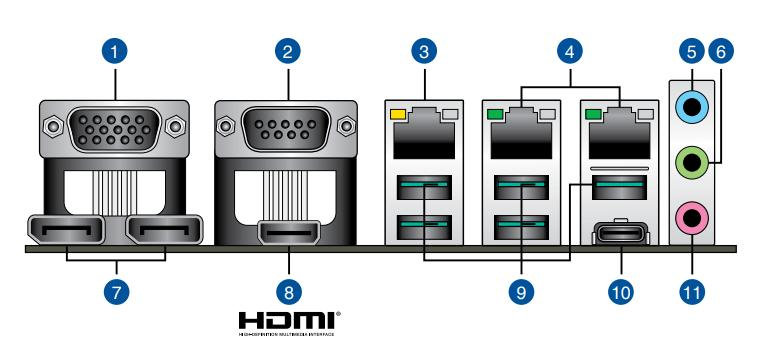

SP5040-4331 Rear Panel

SP5040-4331 Rear Panel
No. Interface No. Interface
1 VGA Port 2 COM Port
3 1GbE LAN Port 4 2.5GbE LAN Port
5 Line In 6 Line Out
7 DisplayPort++ (DP++) 8 HDMI Port
9 USB 3.2 Gen2 Type-A 10 USB 3.2 Gen2 Type-C
11 Mic In
