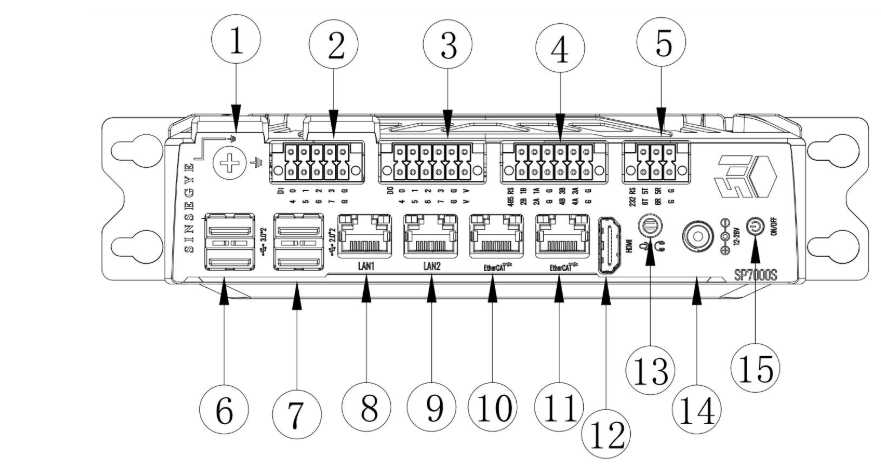

Interface Description

No.	Interface Name	Description
①	Grounding Screw	M4 Grounding Terminal
②	DI Port	8-channel Input (NPN/PNP Compatible)
③	DO Port	8-channel Output (NPN/PNP Compatible)
④	RS485 Ports	4× RS485 Serial Interfaces
⑤	RS232 Ports	2× RS232 Serial Interfaces
⑥	USB Port	Type-A Interface, USB 3.0 Protocol
⑦	USB Port	Type-A Interface, USB 2.0 Protocol
⑧	LAN1	Gigabit Ethernet Port • Network Name: enp1s0 • IPv4: 192.168.1.200 • Netmask: 255.255.255.0
⑨	LAN2	Gigabit Ethernet Port • Network Name: enp2s0
⑩	EtherCAT Master Port	EtherCAT Master Interface • Network Name: enp3s0
⑪	EtherCAT Master Port	EtherCAT Master Interface • Network Name: enp4s0
⑫	HDMI Port	HDMI Display Interface
⑬	Audio I/O	Microphone Input & Line Output
⑭	Power Connector	24VDC Power Input
⑮	Power Switch	System Power Control
