Interface Description

Interface Specifications

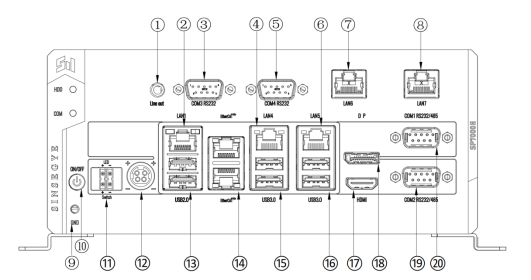

SP7020 Interface Diagram
Interface configuration of SP7020 Industrial Intelligent Computer

No. Interface Name Description
① Line Out Audio Line Output
② LAN1 Gigabit Ethernet Port
• IPv4: 192.168.1.200
• Netmask: 255.255.255.0
③ COM3 RS232 Serial Port
④ LAN4 Gigabit Ethernet Port
⑤ COM4 RS232 Serial Port
⑥ LAN5 Gigabit Ethernet Port
⑦ LAN6 Gigabit Ethernet Port
⑧ LAN7 Gigabit Ethernet Port
⑨ Grounding Screw M4 Grounding Terminal
⑩ Power Switch System Power Control
⑪ SW Switch Remote Power-On Signal
⑫ Power Input 220V AC to 12V DC Adapter Input
⑬ USB Port Type-A Interface, USB 2.0 Protocol
⑭ EtherCAT Master Port EtherCAT Master Interfaces
• Network Names: enp8s0, enp1s0
⑮ USB Port Type-A Interface, USB 3.0 Protocol
⑯ USB Port Type-A Interface, USB 3.0 Protocol
⑰ DP Port DisplayPort Interface
⑱ HDMI Port HDMI Display Interface
⑲ COM1 RS232/RS485 Combo Serial Port
⑳ COM2 RS232/RS485 Combo Serial Port
