Interface Description

Interface Specifications

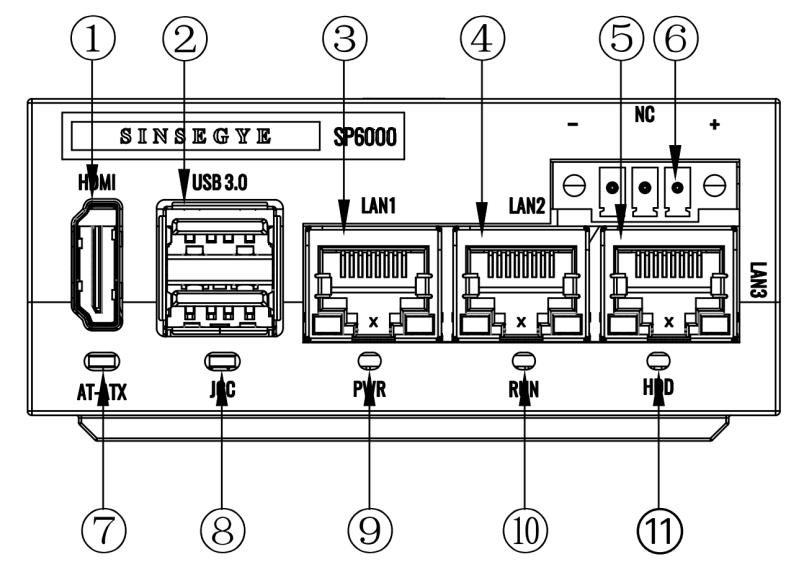

SP6000 Interface Diagram
Interface diagram of SP6000 Industrial Intelligent Computer

No. Interface Name Description
1 HDMI Port HDMI Display Interface
2 USB Port Type-A Interface, USB 3.0 Protocol
3 LAN1 Gigabit Ethernet Port
IPv4: 192.168.1.200
4 LAN2 (EtherCAT Master) EtherCAT Master Port
Network Name: eth1
5 LAN3 (EtherCAT Master) EtherCAT Master Port
Network Name: eth2
6 Power Connector 24V DC Power Input
7 AT-ATX DIP Switch ← AT: Auto Power-On After Power Failure
→ ATX: Manual Power-On Required
8 JCC DIP Switch ← Normal Operation
→ Reset BIOS to Factory Defaults
9 PWR Indicator Power Status LED
10 RUN Indicator System Operation LED
11 HDD Indicator Storage Activity LED
