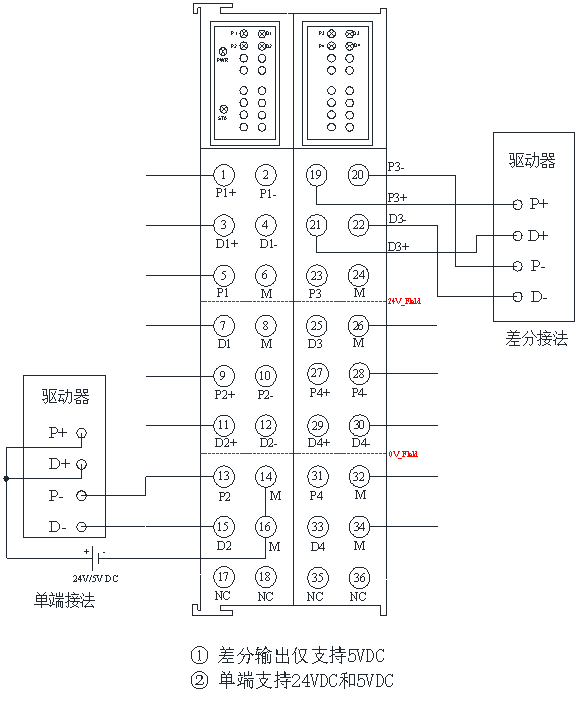

Wiring Diagram

Wiring Diagram

Wiring Terminal Description

Terminal Meaning
P1+ Axis 1 differential output, positive pulse signal
P1- Axis 1 differential output, negative pulse signal
D1+ Axis 1 differential output, positive direction signal
D1- Axis 1 differential output, negative direction signal
P2+ Axis 2 differential output, positive pulse signal
P2- Axis 2 differential output, negative pulse signal
D2+ Axis 2 differential output, positive direction signal
D2- Axis 2 differential output, negative direction signal
P3+ Axis 3 differential output, positive pulse signal
P3- Axis 3 differential output, negative pulse signal
D3+ Axis 3 differential output, positive direction signal
D3- Axis 3 differential output, negative direction signal
P4+ Axis 4 differential output, positive pulse signal
P4- Axis 4 differential output, negative pulse signal
D4+ Axis 4 differential output, positive direction signal
D4- Axis 4 differential output, negative direction signal
P1 Axis 1 single-ended output, pulse signal
D1 Axis 1 single-ended output, direction signal
P2 Axis 2 single-ended output, pulse signal
D2 Axis 2 single-ended output, direction signal
P3 Axis 3 single-ended output, pulse signal
D3 Axis 3 single-ended output, direction signal
P4 Axis 4 single-ended output, pulse signal
D4 Axis 4 single-ended output, direction signal
M Single-ended output common terminal
