Wiring Diagram

Assembly and Wiring

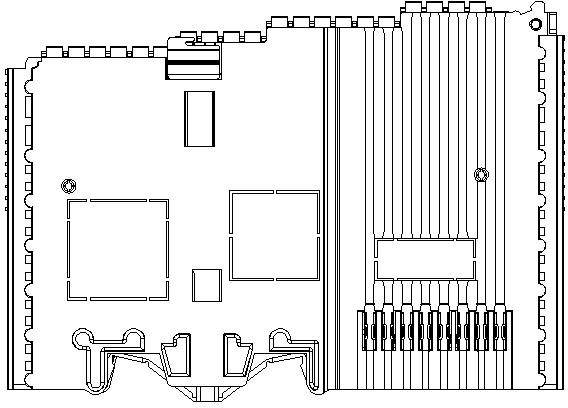

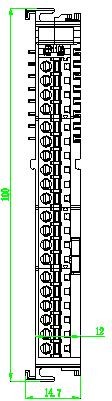

SRT4024 Module Dimension Diagram

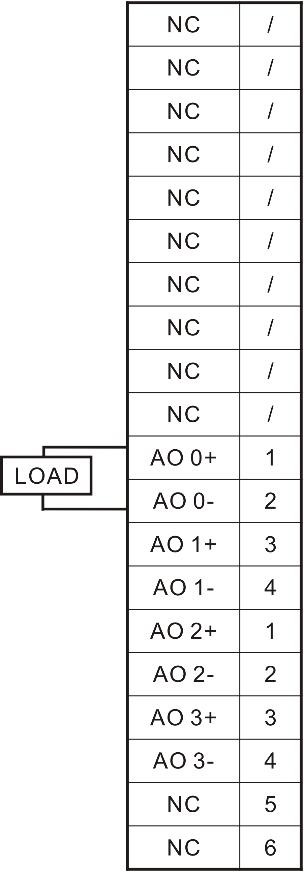

SRT4024 Module Wiring Diagram

SRT4024 Module Wiring Table

Output Channel No. Terminal Silkscreen Identification Description
NC / No interface
AO 0+ 1 Output channel 0 Positive pole
AO 0- 2 Output Channel 0 Negative pole
AO 1+ 3 Output Channel 1 Positive pole
AO 1- 4 Output Channel 1 Negative pole
AO 2+ 1 Output Channel 2 Positive pole
AO 2- 2 Output Channel 2 Negative pole
AO 3+ 3 Output Channel 3 Positive pole
AO 3- 4 Output Channel 3 Negative pole
NC 5& 6 No wiring required
