Wiring Diagram

Dimensions and Wiring Instructions

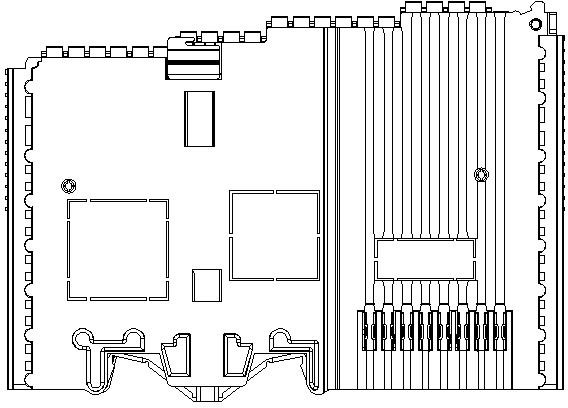

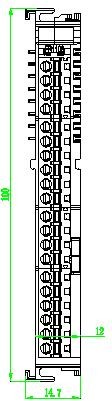

SRT3906 Module Dimension Diagram

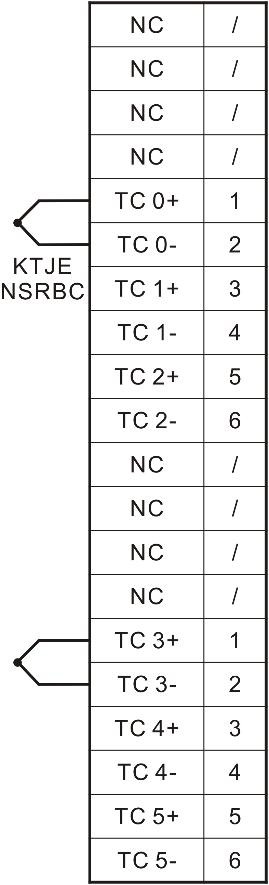

SRT3906 Module Wiring Table

Input Channel No. Terminal Silkscreen Identification Description
NC / No interface
TC 0+ 1 Input Channel 0 Positive pole
TC 0- 2 Input Channel 0 Negative pole
TC 1+ 3 Input Channel 1 Positive pole
TC 1- 4 Input Channel 1 Negative pole
TC 2+ 5 Input Channel 2 Positive pole
TC 2- 6 Input Channel 2 Negative pole
NC / No interface
TC 3+ 1 Input Channel 3 Positive pole
TC 3- 2 Input Channel 3 Negative pole
TC 4+ 3 Input Channel 4 Positive pole
TC 4- 4 Input Channel 4 Negative pole
TC 5+ 5 Input Channel 5 Positive pole
TC 5- 6 Input Channel 5 Negative pole
