Wiring Diagram

Wiring Diagram

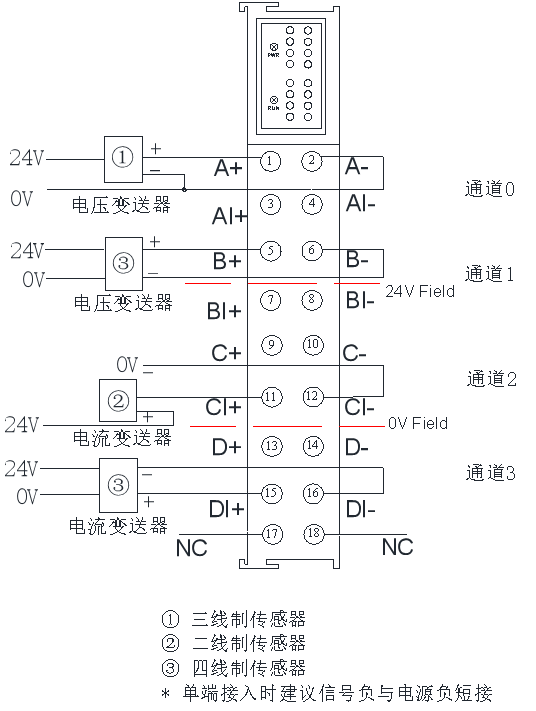

| SRE3204 Wiring Diagram |

Note: A+ and A- are voltage signal input channels. AI+ and AI- are current signal input channels. If CH0 needs to be connected with voltage signals, it can be connected with A+ and A- terminals; If CH0 needs to be connected with current signal, it can be connected with AI+ and AI- terminals; The two channels are CH0 and occupy the same data address. Therefore, only one of them can be selected for use, and they cannot be connected at the same time. This rule also applies to other input channels. The wiring in the diagram is only an example, and the specific wiring mode can be determined as needed.

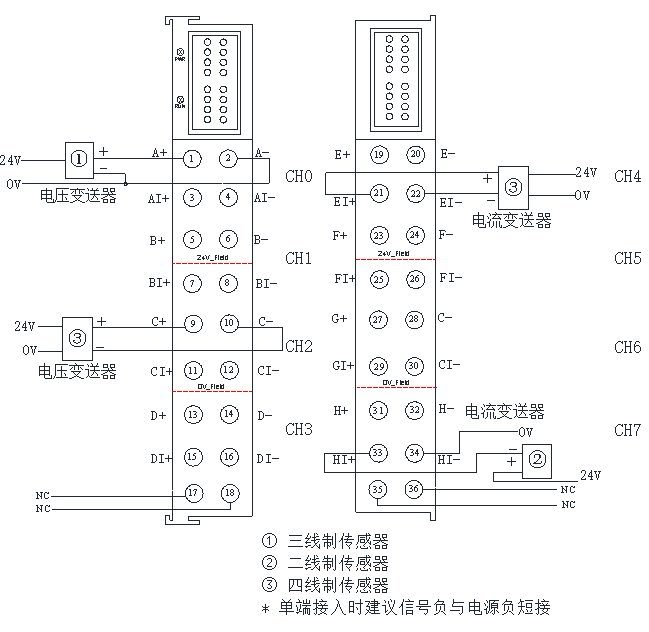

SRE3208 Wiring Diagram

Note: A+ and A- are voltage signal input channels. AI+ and AI- are current signal input channels. If CH0 needs to be connected with voltage signals, it can be connected with A+ and A- terminals; If CH0 needs to be connected with current signal, it can be connected with AI+ and AI- terminals; The two channels are CH0 and occupy the same data address. Therefore, only one of them can be selected for use, and they cannot be connected at the same time. This rule also applies to other input channels. The wiring in the diagram is only an example, and the specific wiring mode can be determined as needed.

Terminal Description

SRE3204 Terminal Description

SRE3208 Terminal Description |
