Wiring Diagram

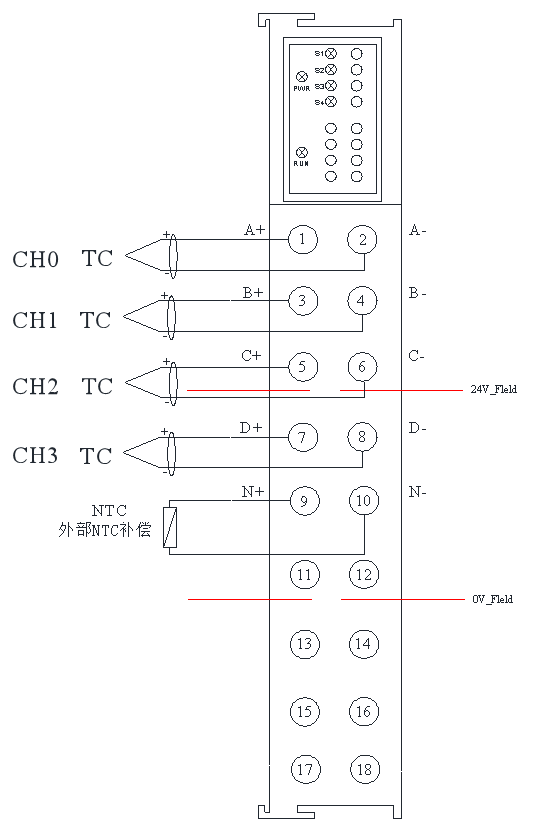

SRE3284 Wiring Diagram

Terminal Description

Terminal Description
A+ A- CH0 thermocouple input terminal
B+ B- CH1 thermocouple input terminal
C+ C- CH2 thermocouple input terminal
D+ D- CH3 thermocouple input terminal
NTC+ NTC- External NTC compensation

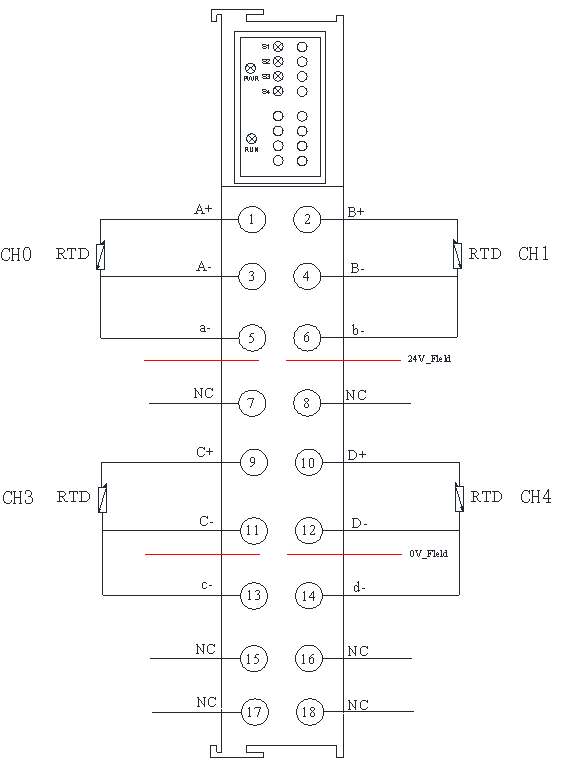

SRE3274 Wiring Diagram

Terminal Description

Terminal Description
A+, A-, a- CH0 RTD input terminal
B+, B-, b- CH1 RTD input terminal
C+, C-, c- CH2 RTD input terminal
D+, D-, d- CH3 RTD input terminal
